The world’s most popular portable sawmill design featuring a durable steel box bed frame, optional saw head power feed, optional GO trailer, and more versatile attachments.
The LT15 portable sawmill features a cutting capacity for sawing 711mm diameter logs into 660mm wide boards up to 5.4m in length with optional 2m extensions for sawing longer lengths. Built in the USA with premium quality steel and industrial-grade powder coat paint, the LT15 adds durability with a steel box bed frame and features gas, diesel, or electric sawmill options, a quick up/down sawhead, gravity-fed blade lubrication, steel side supports, steel log clamps, optional saw head power feed, optional GO trailer, and more for a portable sawmill that is versatile, reliable and trusted throughout the world
Read More

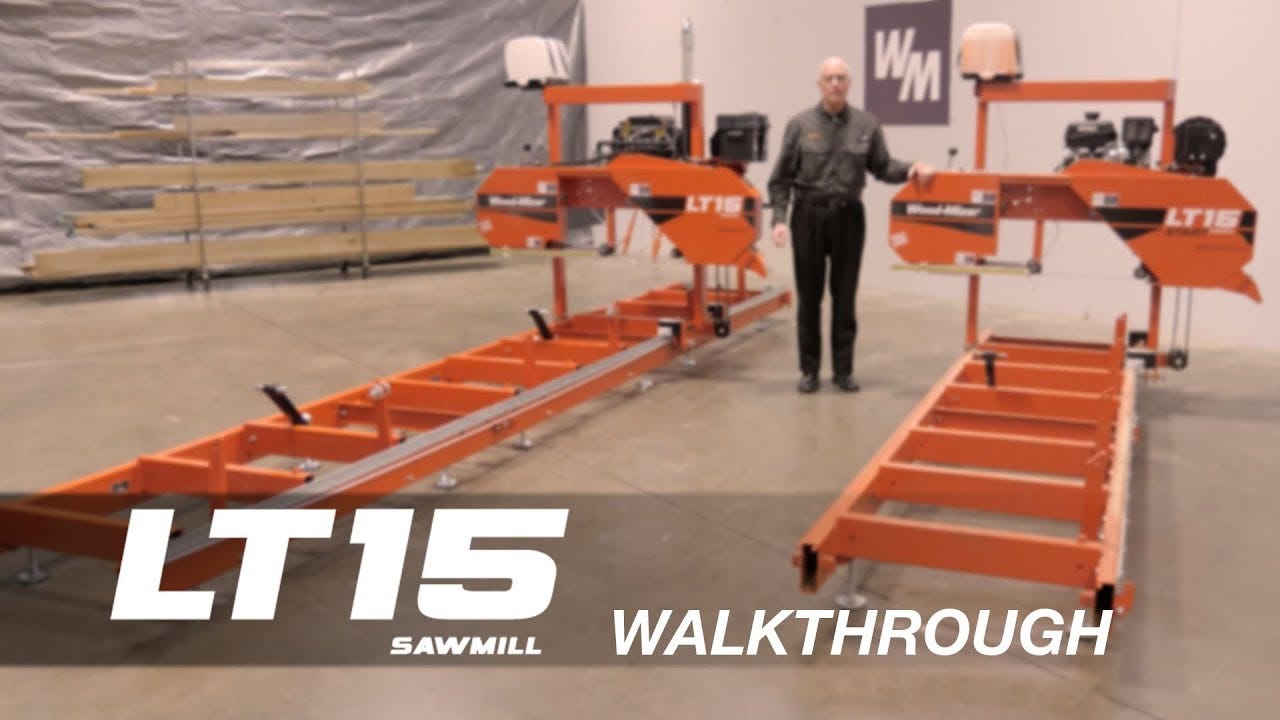

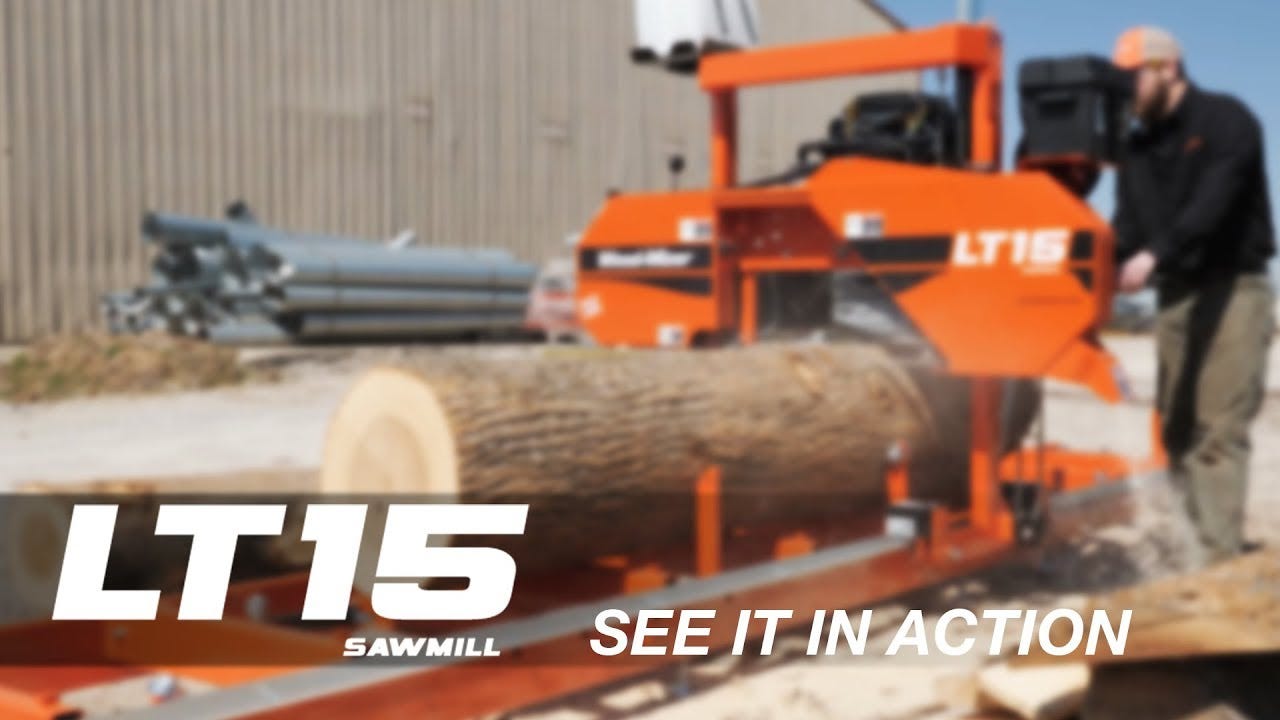

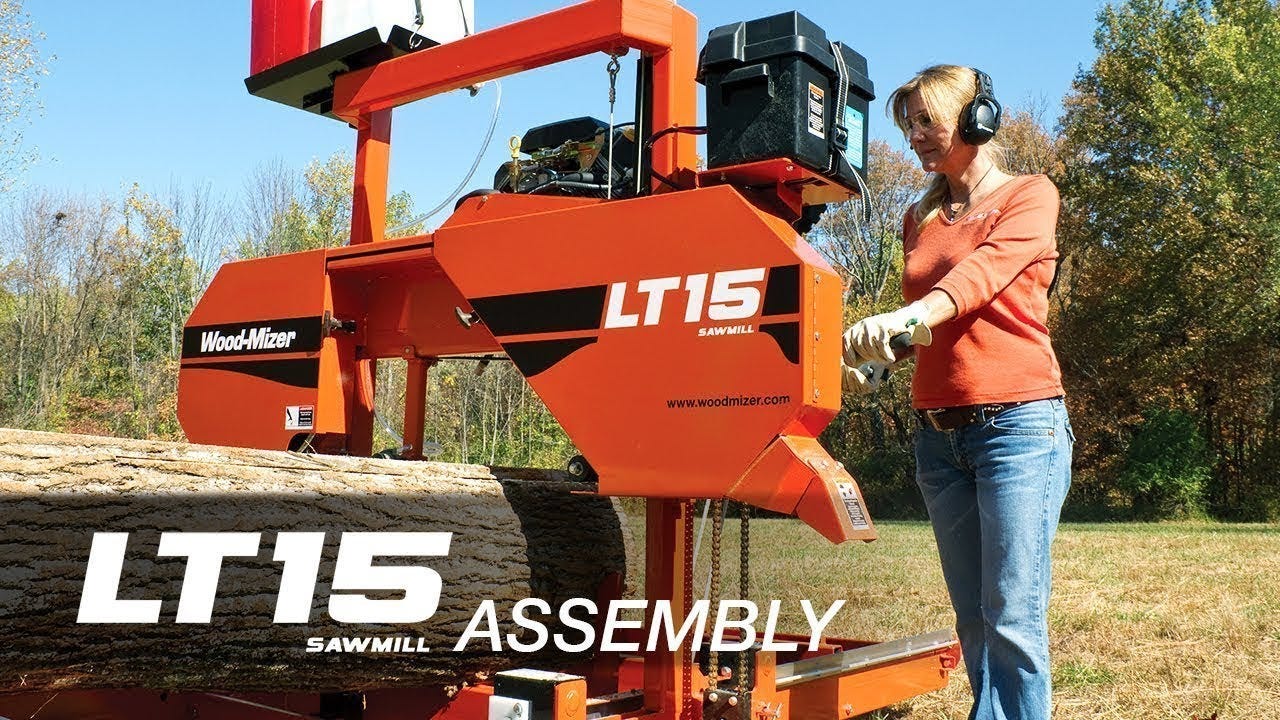

VideosLT15 Portable Sawmill
FeaturesLT15 Portable Sawmill
SpecificationsLT15 Portable Sawmill
Specifications
Power
Power Selections
7.5kW (10HP) diesel 12.7kW (17HP) diesel 14.1kW (19HP) petrol 18.6kW (25HP) petrol 11kW (15 Hp) 230 V 1-Phase Electric 11kW (15 Hp) 230 V 3-Phase Electric 15 Hp (11kW) 400/460 V 3-Phase Electric
Cutting Capacity
Max Width of Cut
66cm (26")
Max Log Diameter
71cm (28")
Max Cant Width
58cm (23")
Production Rate
up to .75m³/hr (320 bd ft/hr)
Max Depth of Cut
26cm (10 1/2")
Max Log Length
5.4m (17.7')
Max Log Length (with extensions)
Unlimited
Log Weight
1,814kg (4,000lbs)
Blade
Blade Length
4,010mm (158'')
Blade Guides Style
Roller Guides
Blade Lubrication System
18 L (5 Gal.) Water Tank with On/Off Valve
Blade Tension System
Cam Easy Tension Handle
Blade Thickness
1mm (.042'')
Blade Width
32mm (1 1/4'')
Blade Guides Size
31.75mm (1 1/4") 38.10mm (1 1/2")
Blade Wheels
Blade Wheel Diameter
483mm (19")
Blade Wheel Type
Belted Blade Wheels
Head Features and Options
Operator Location
Walk Along Crank Feed
Setworks
N/A
Head Forward/Reverse
Crank Feed Power Feed (optional)
Head Up/Down
Hand Crank
Blade Engagement
Manual Lever
Blade Guide Arm
Adjusted with Manual Lever
Debarker
N/A
Bed Features and Options
Side Supports
6 Side Supports
Log Leveling
N/A
Log Turning
Manual
Log Loading
Manual
Trailer Package
Optional
Log Clamping
2 Adjustable Log Clamps
Additional Bed Options
2.1m (6' 8") Bed Extension Pro Package Resaw Attachment Shingle & Lapsider Attachment LatheMizer Attachment
Machine Dimensions and Requirements
Bed Construction
Twin Rail
Frame Construction
Semi-Cantilever
Mobility
Stationary
Trailer Hitch Size
N/A
Delivery Methods
Pallet
Shipment Weight
661kg (1,459 lbs)
Weight (heaviest power option)
544kg (1,200 lbs)
Length
6.2m (20' 4")
